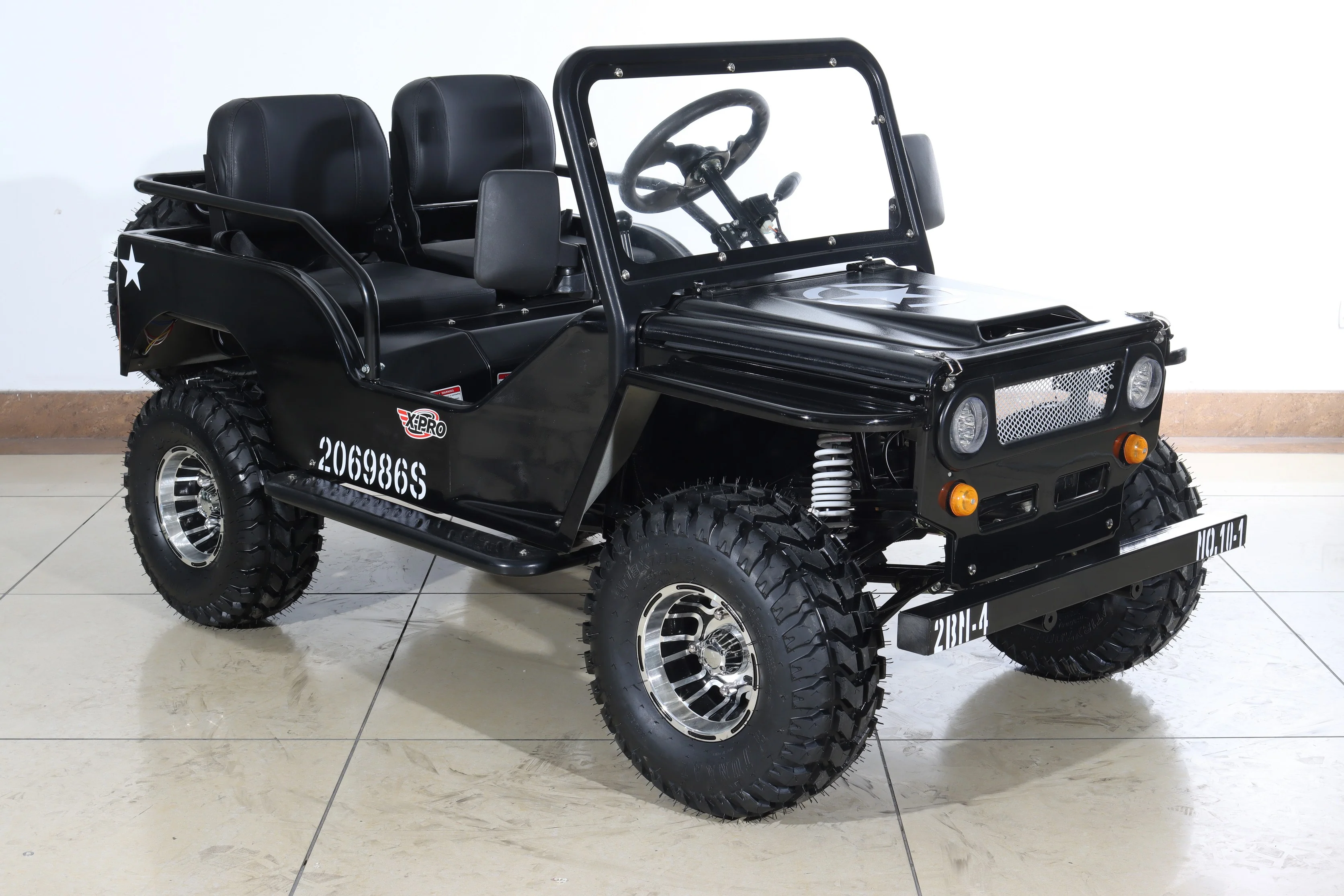

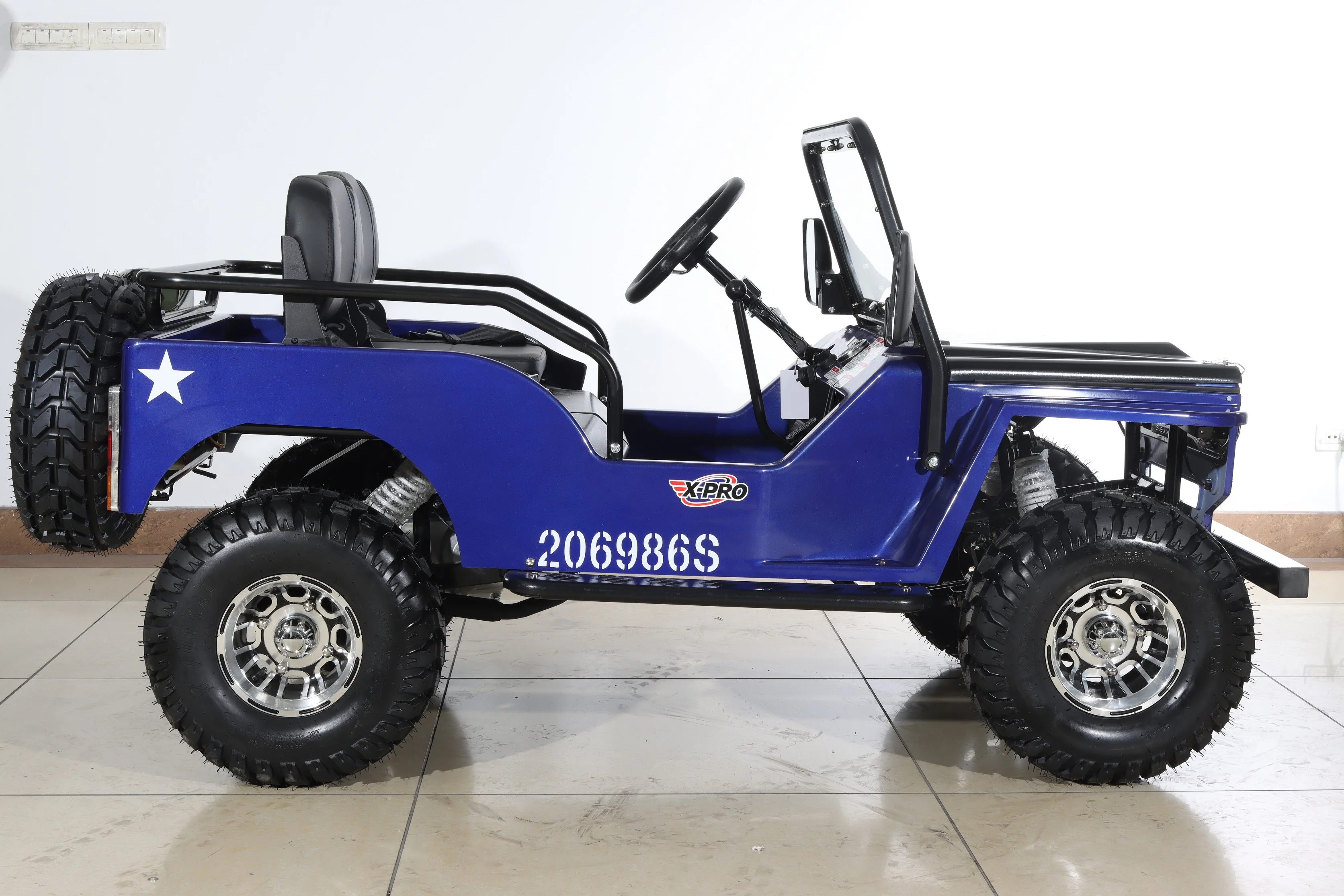

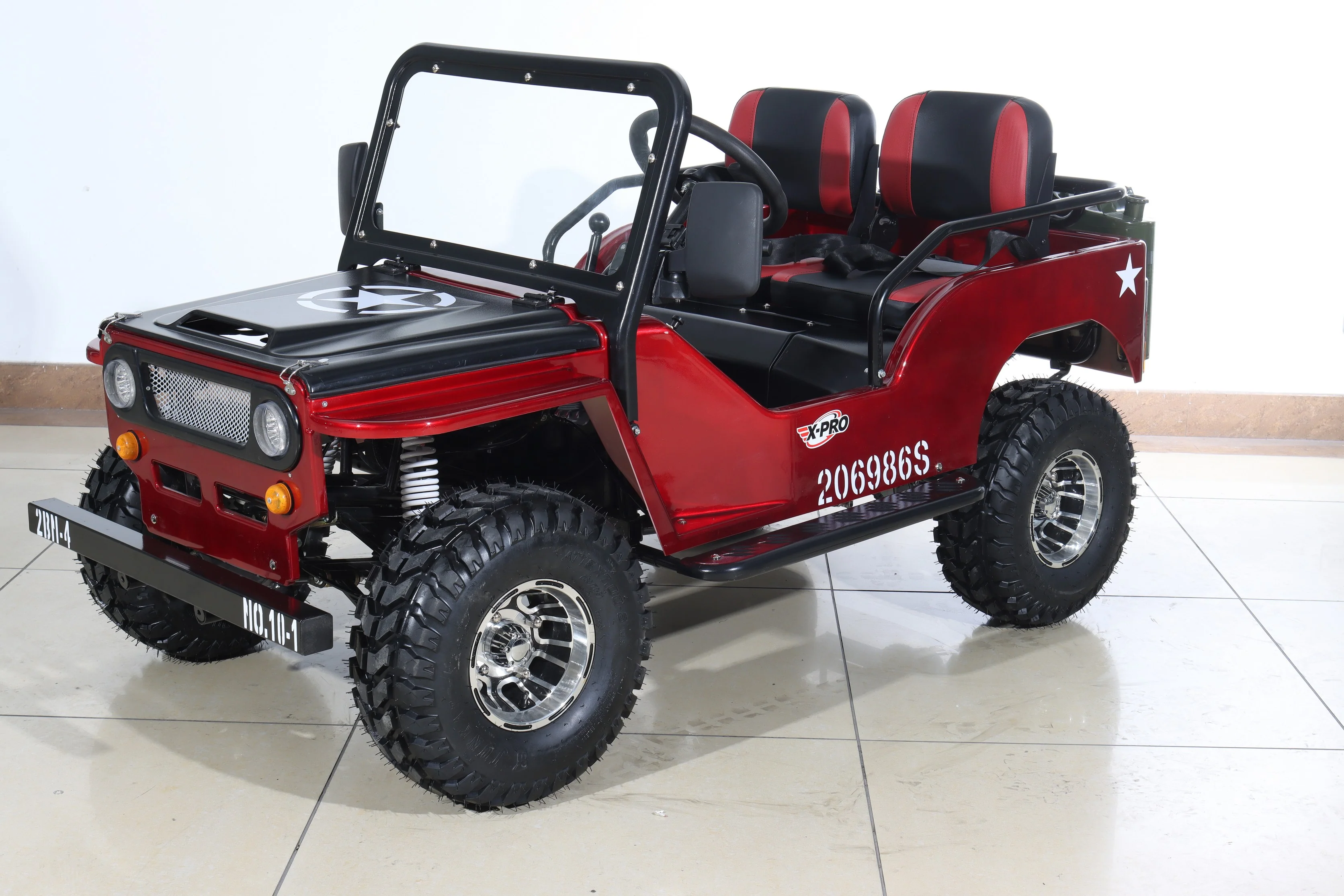

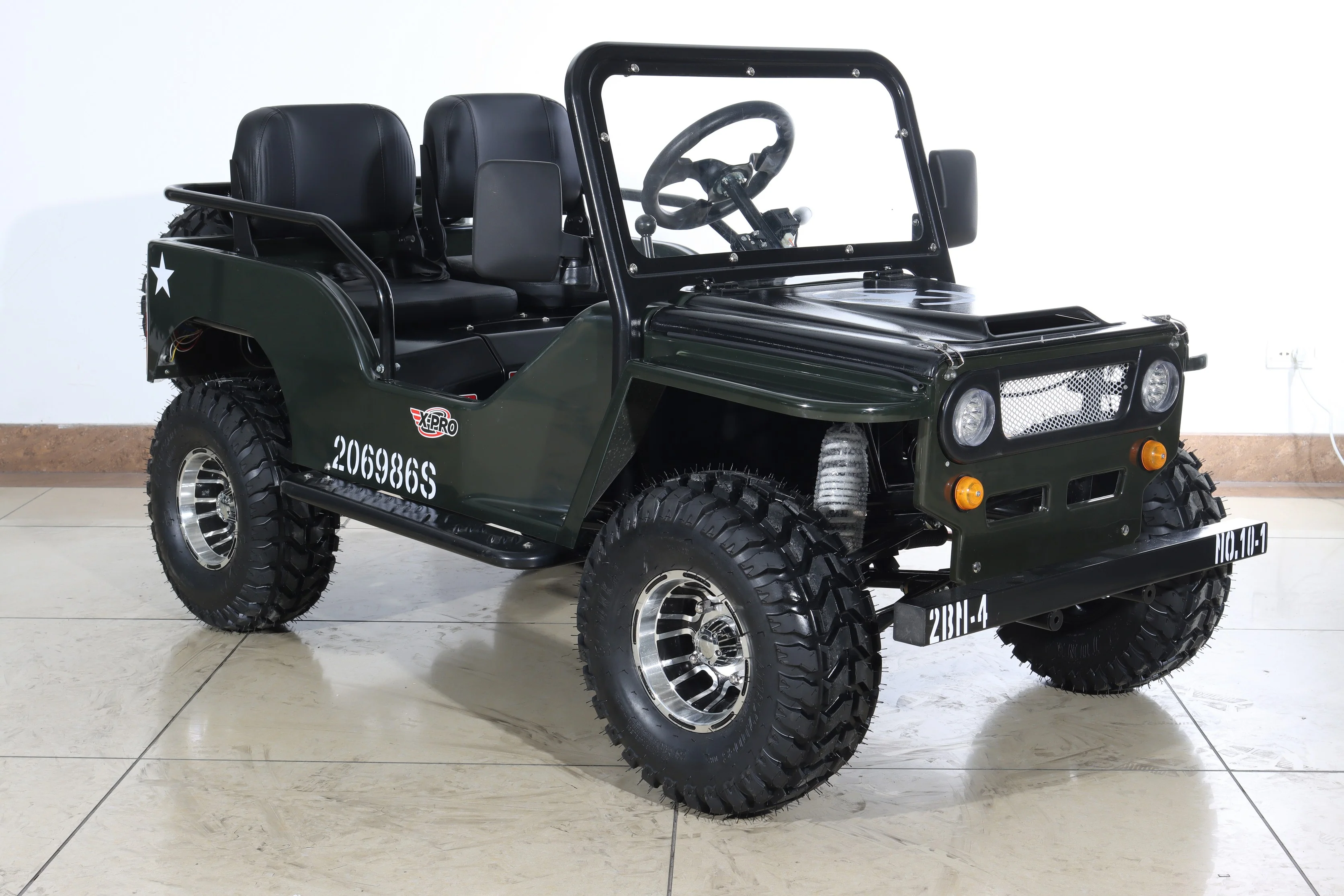

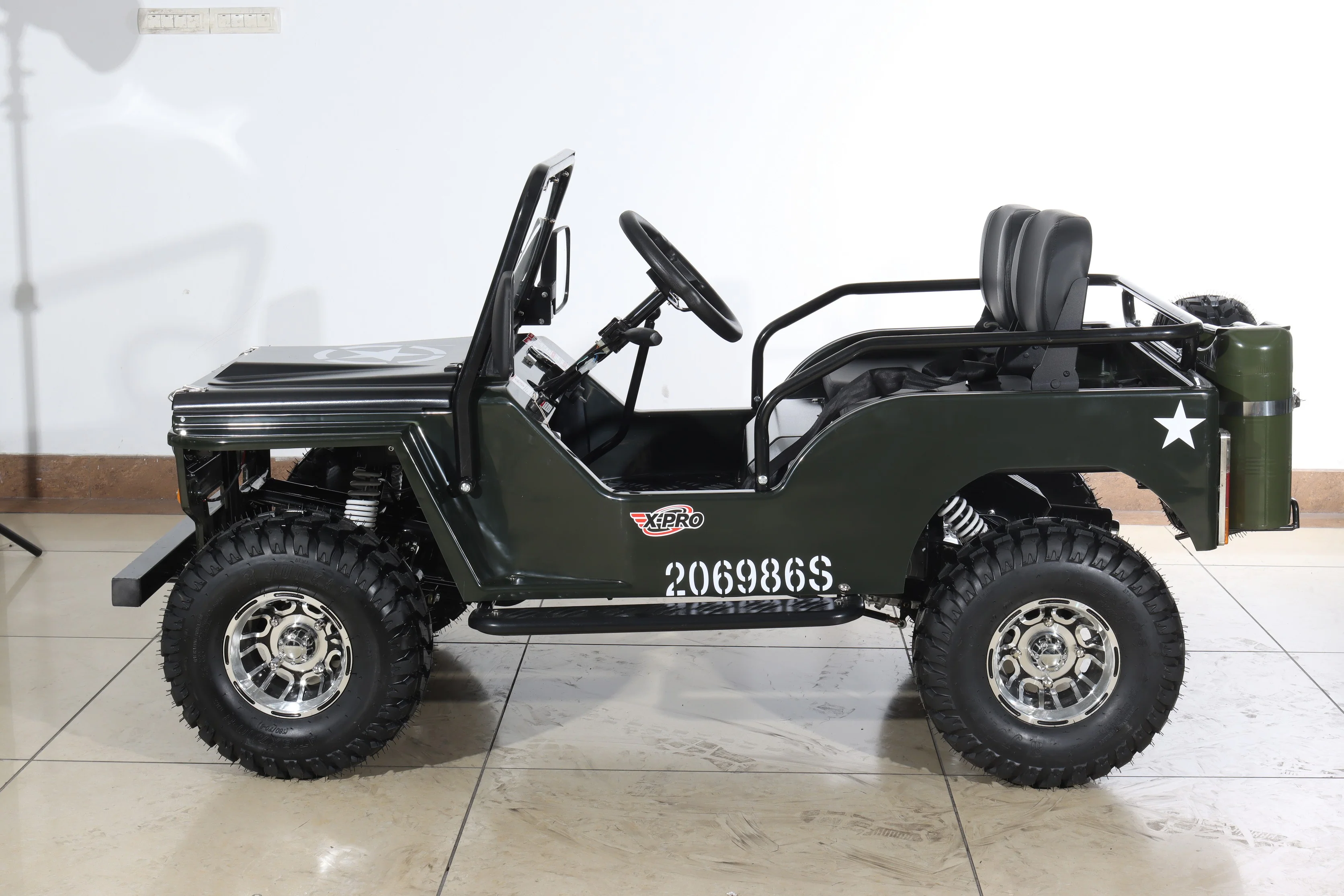

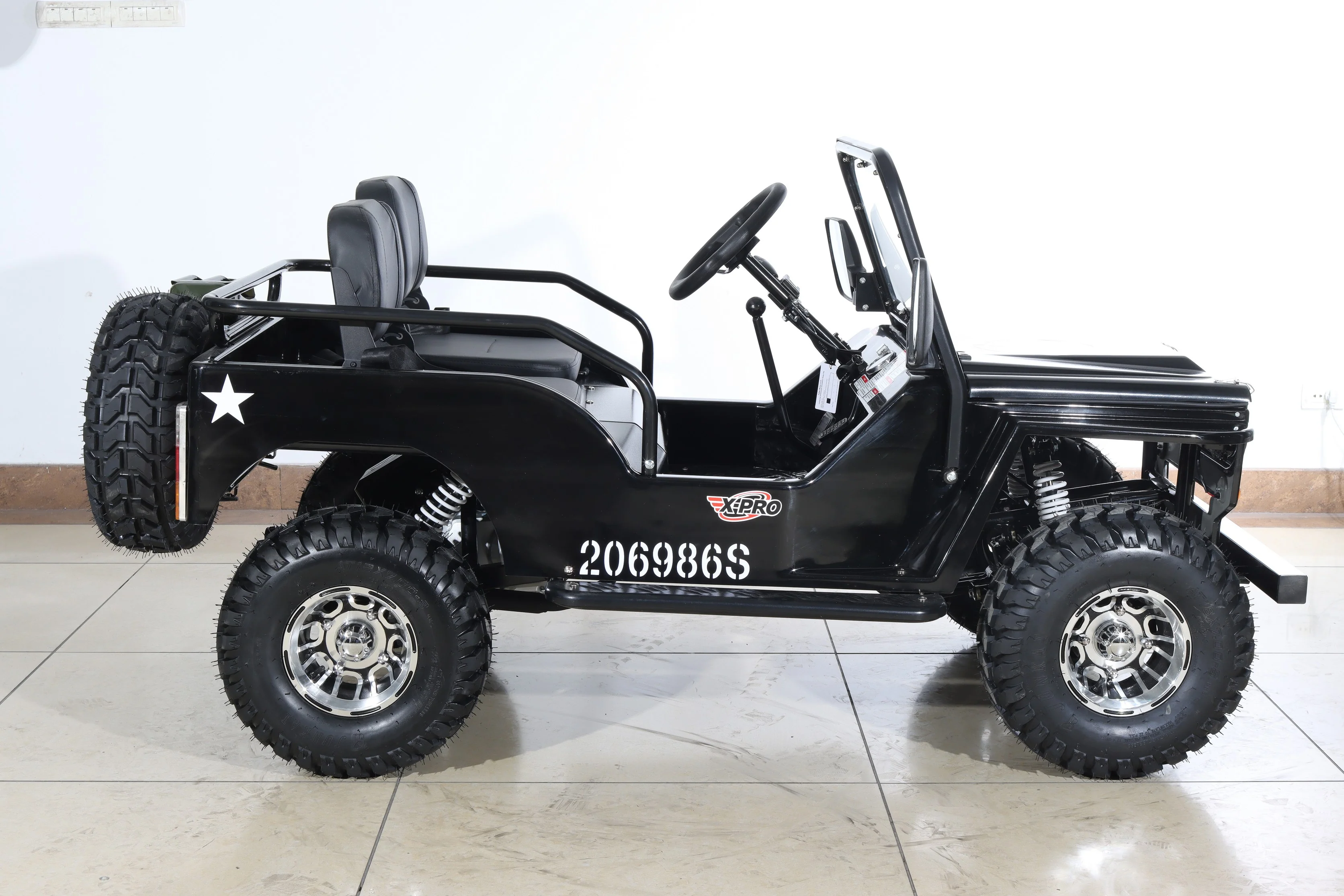

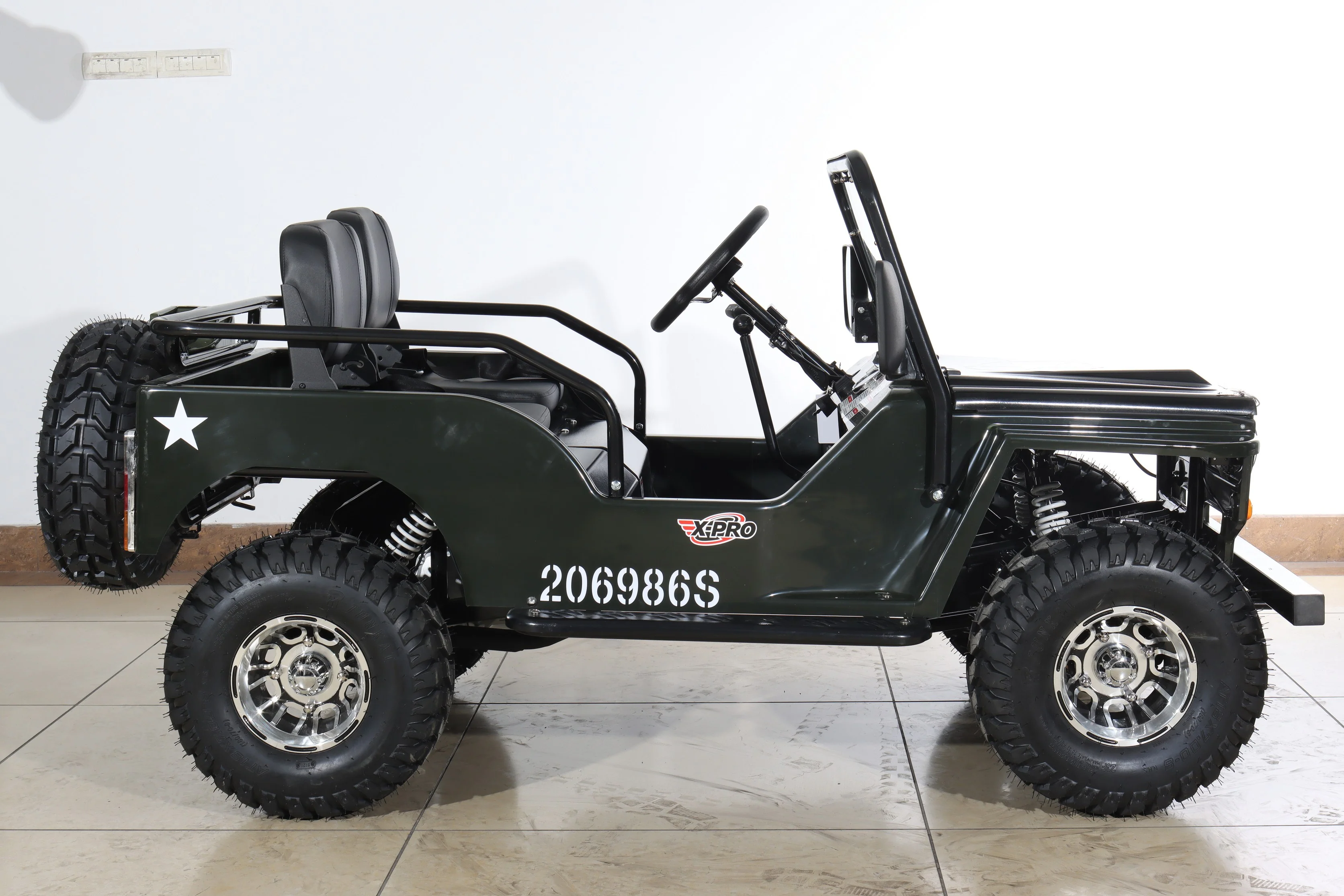

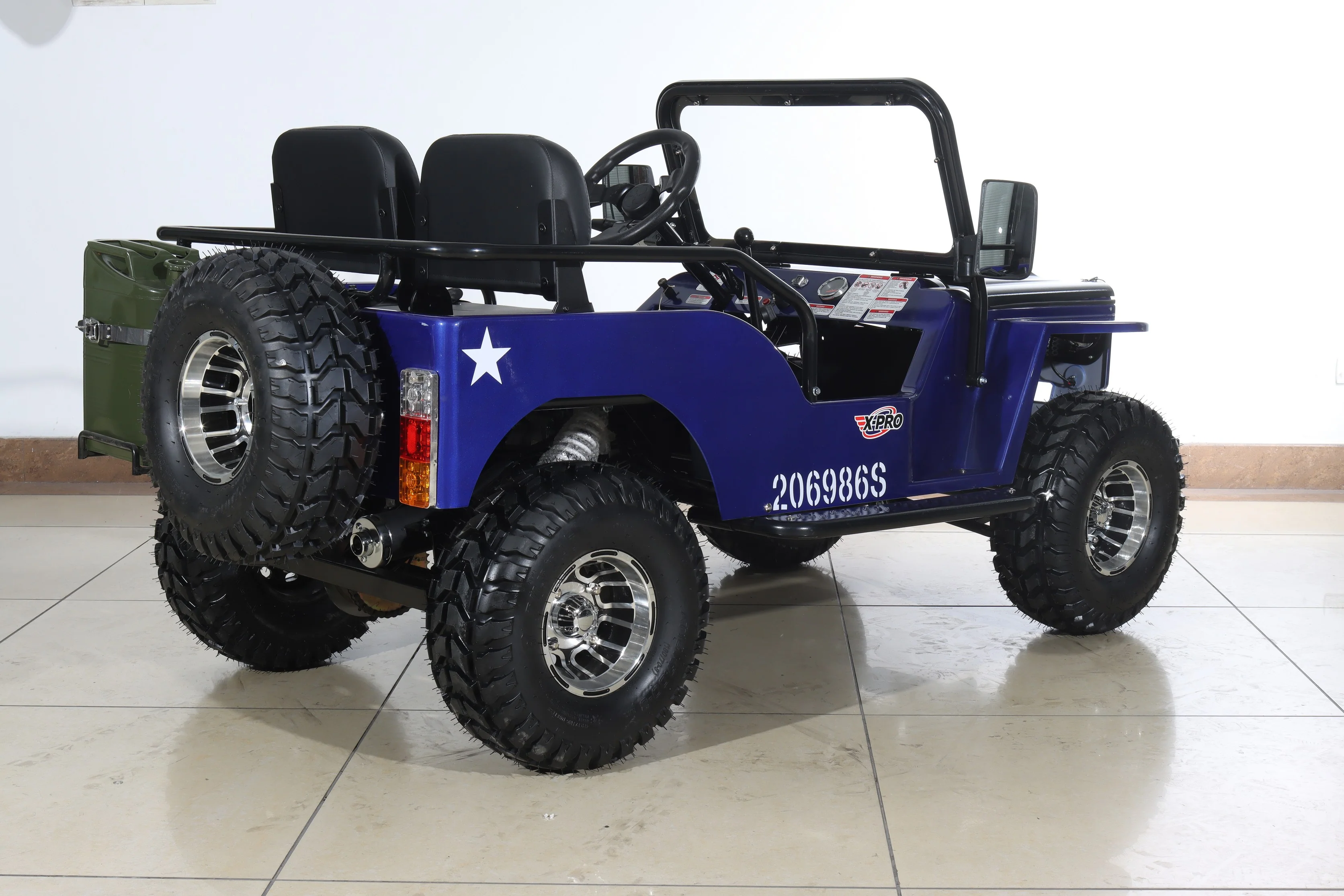

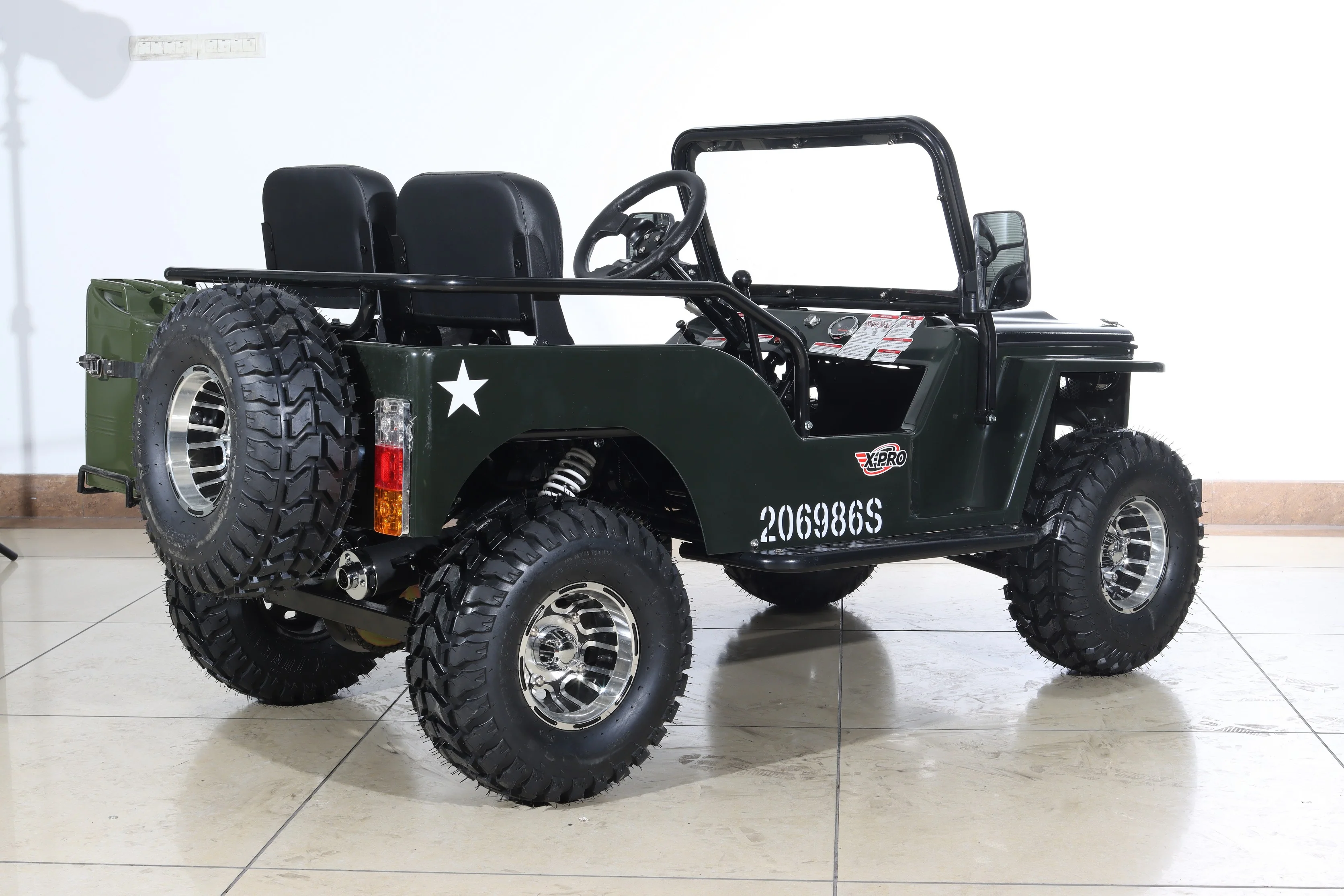

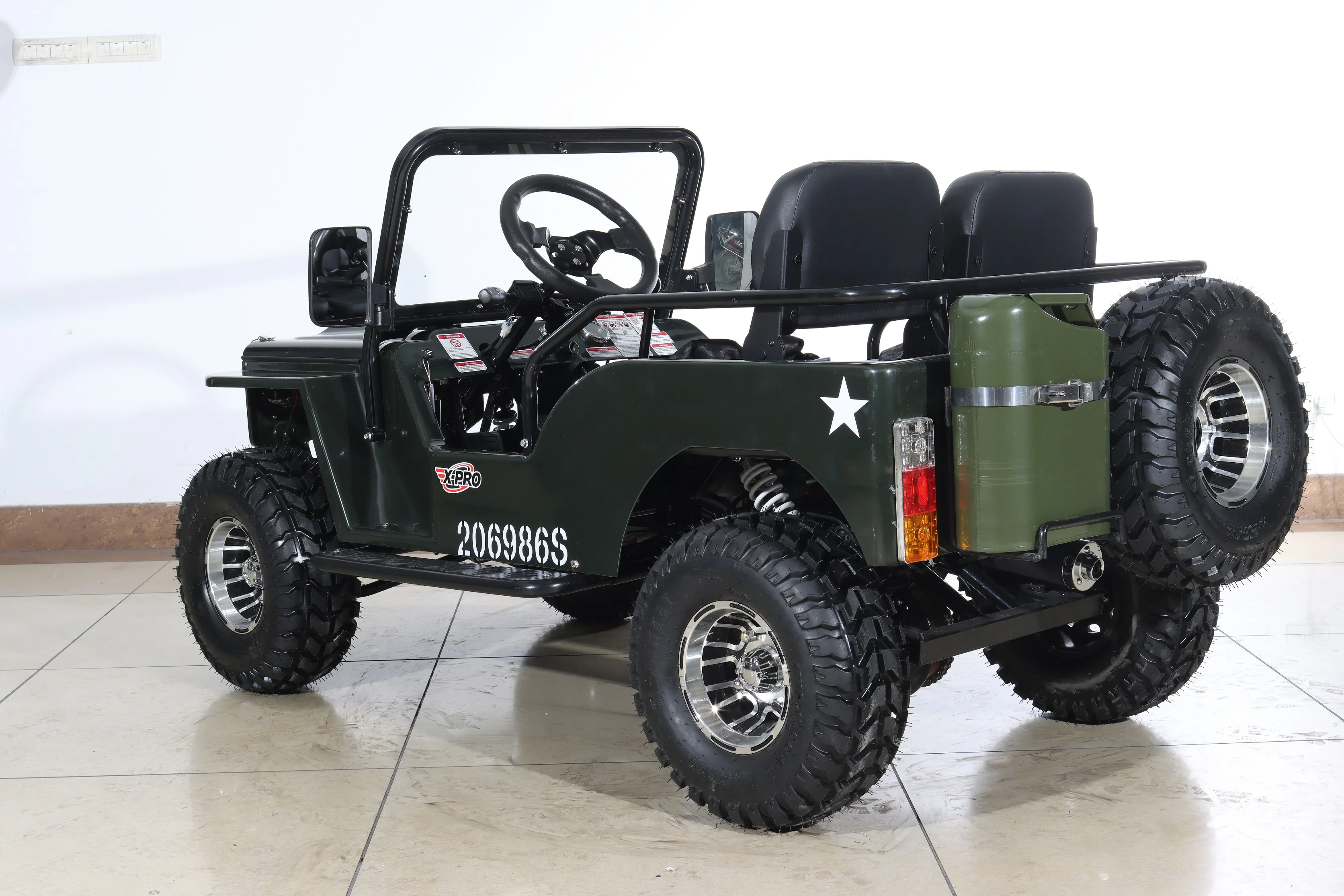

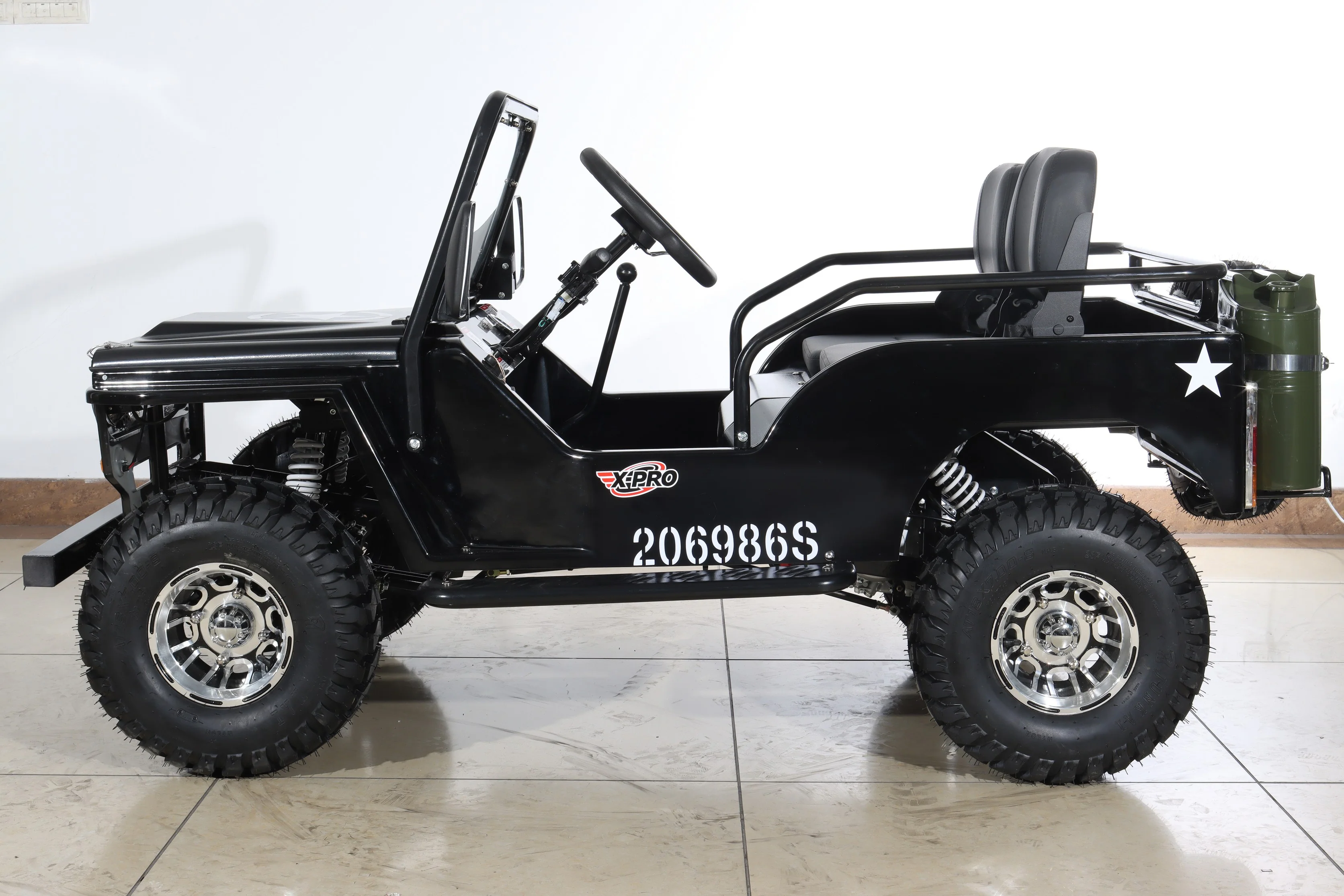

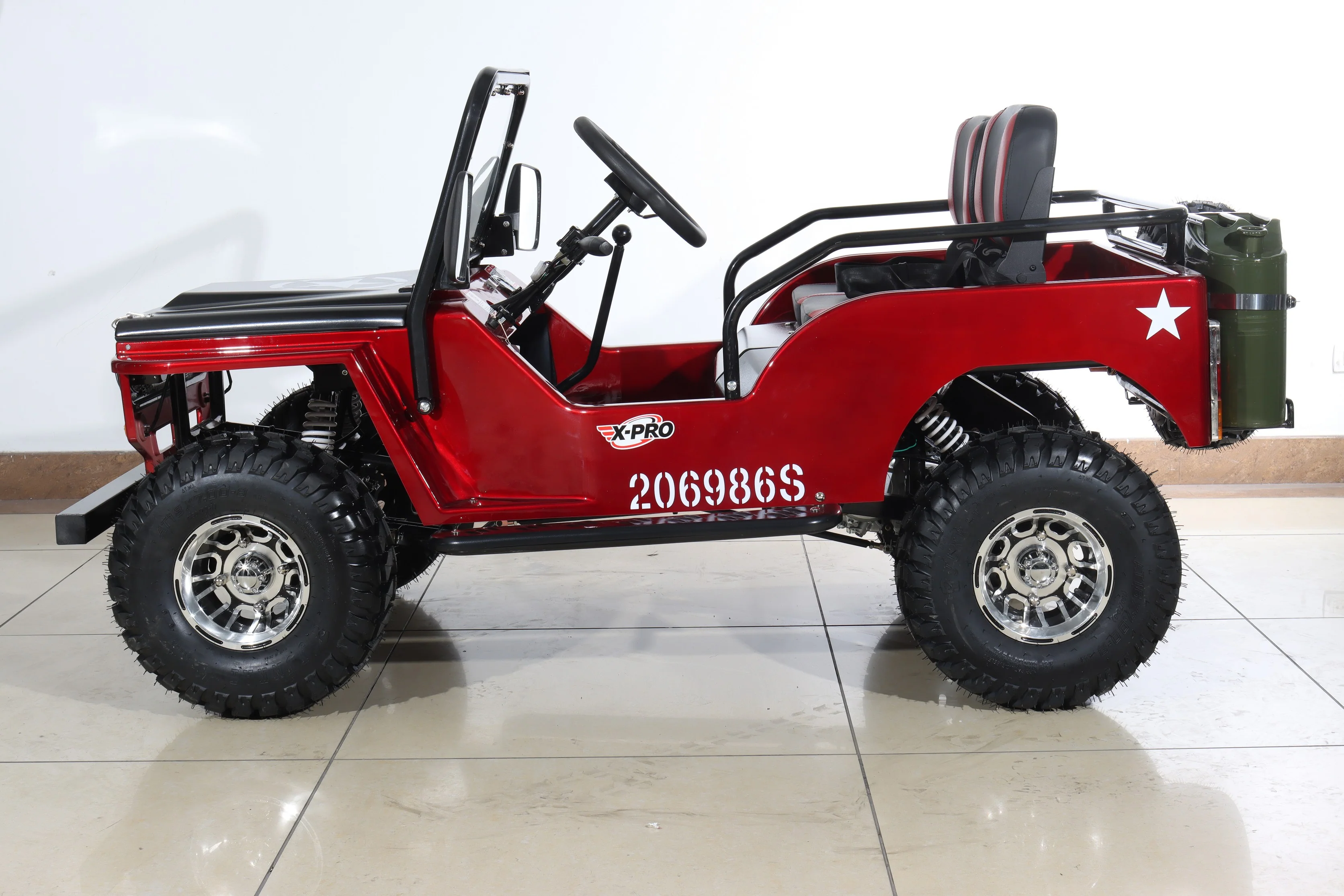

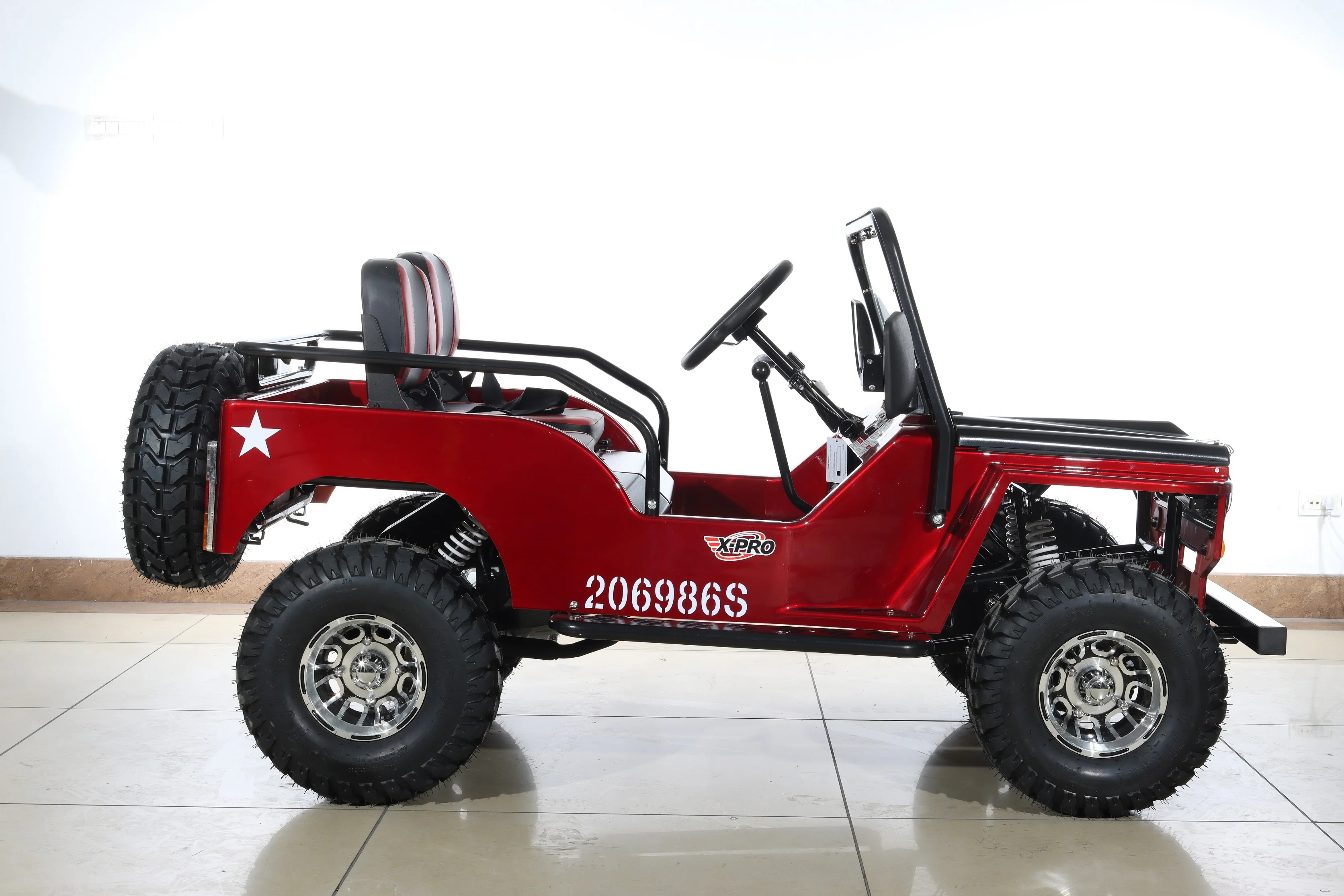

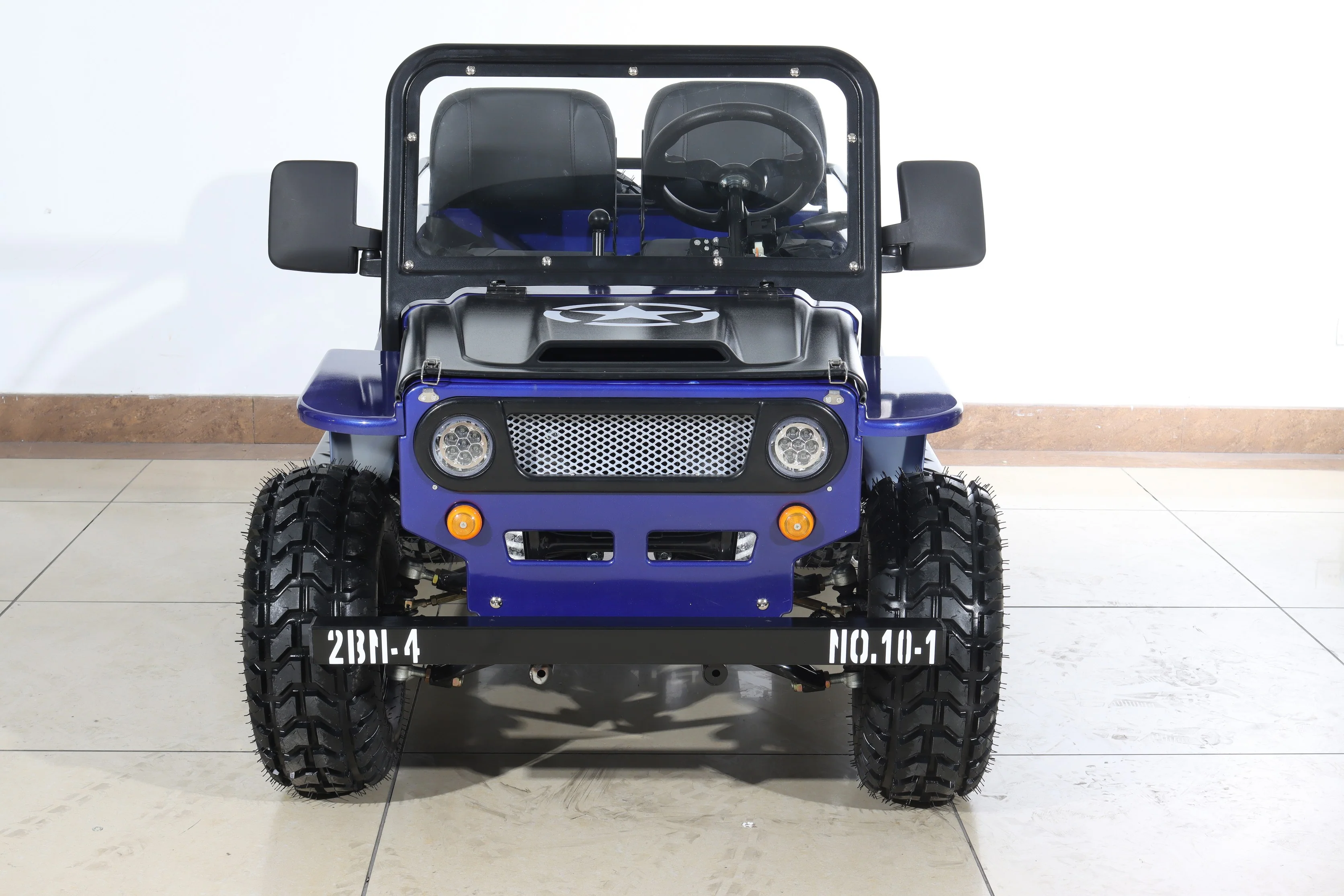

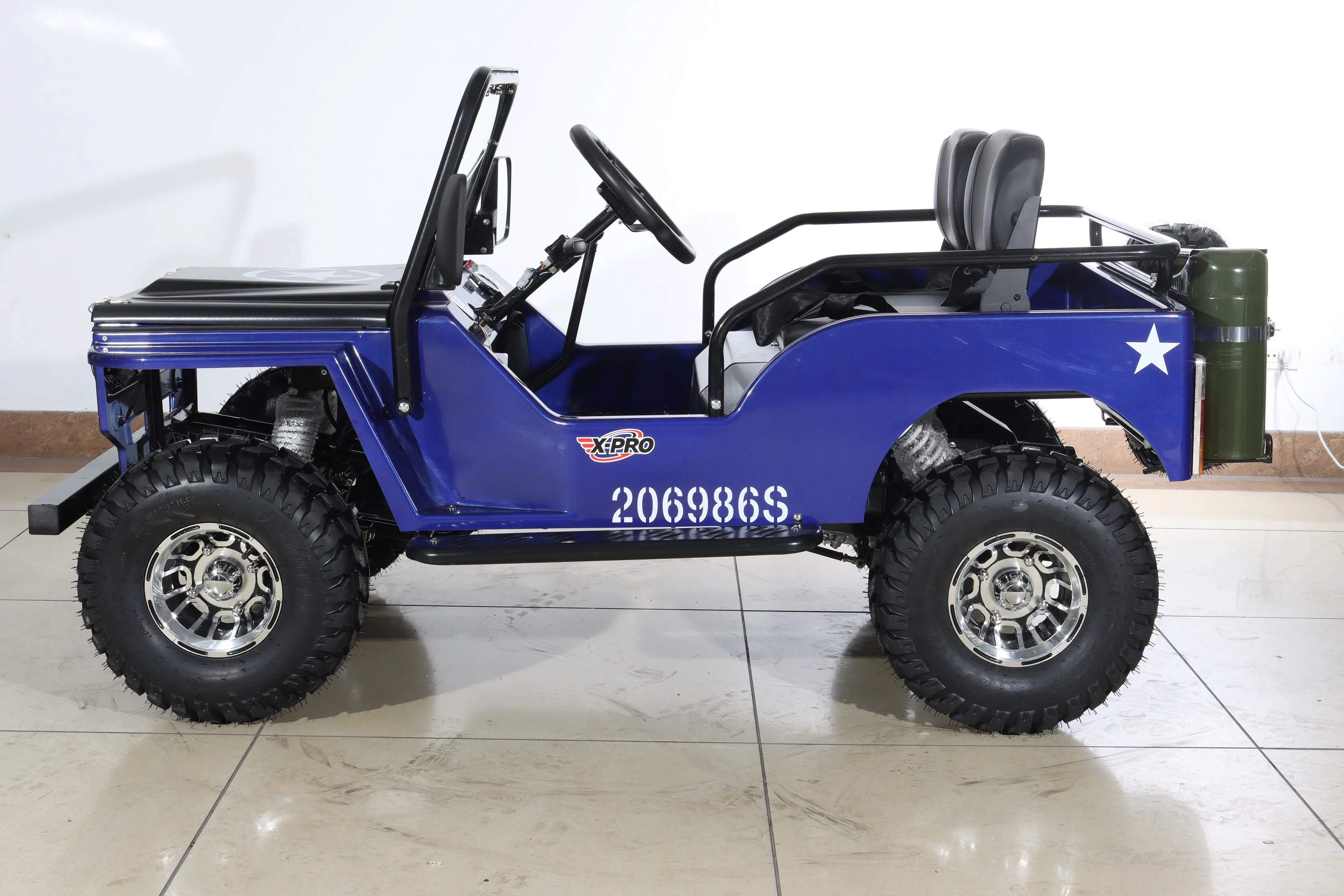

New Upgraded X-PRO 140cc Go Kart.

• Main Features:
1. Free Upgraded 140cc Powerful 1 Reverse + N + 3-speed Engine: The engine power and torque are increased, making it more powerful and climbing hills more easily.
2. Free Upgraded 18" Aluminium Rim Wheels: Aluminium rims installed on all 4 tires + spare tire! We have upgraded the tires on the X-PRO Mini Jeep 140cc to perform in all terrains, including, but not limited to: snow, mud, grass, rocks, etc.

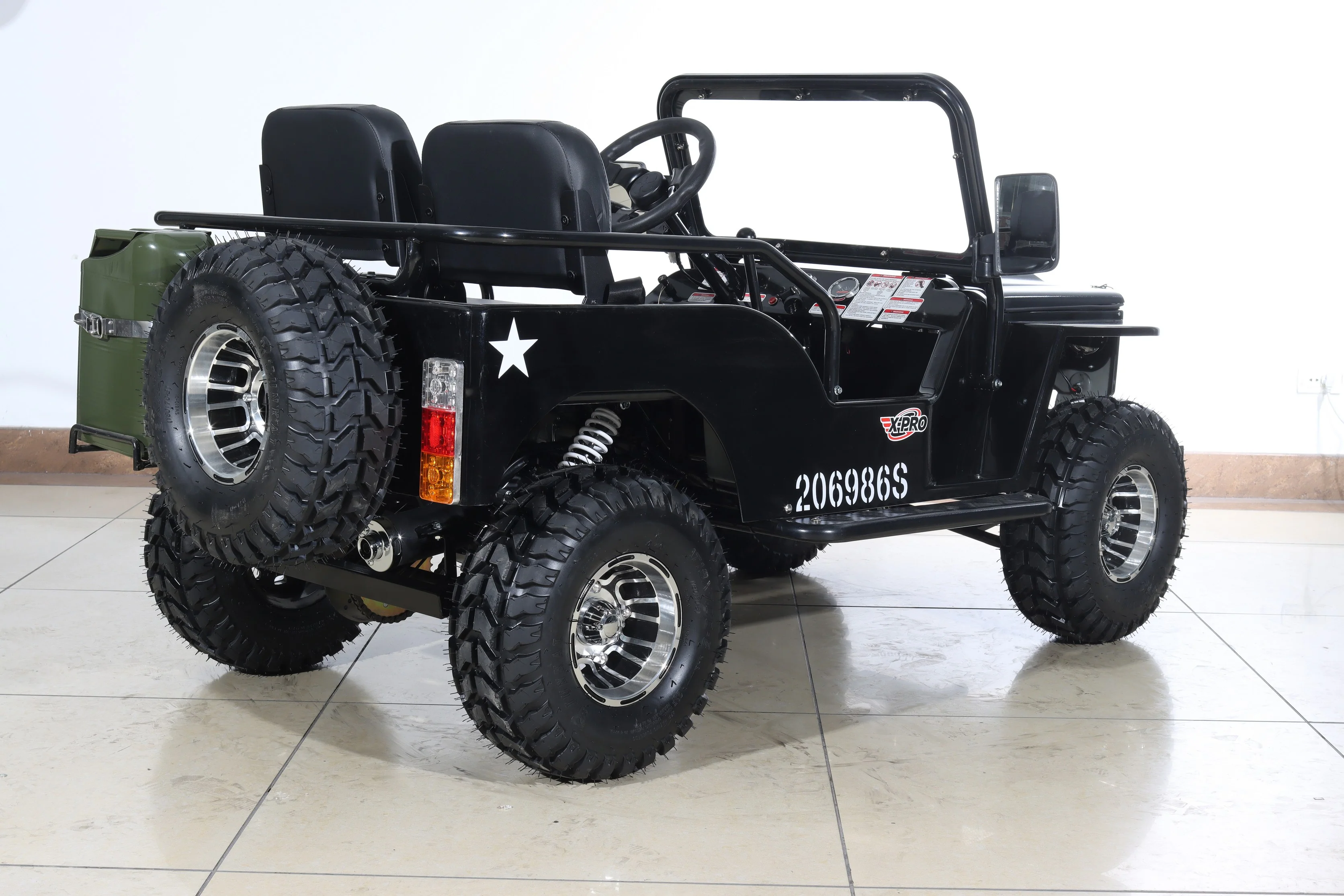

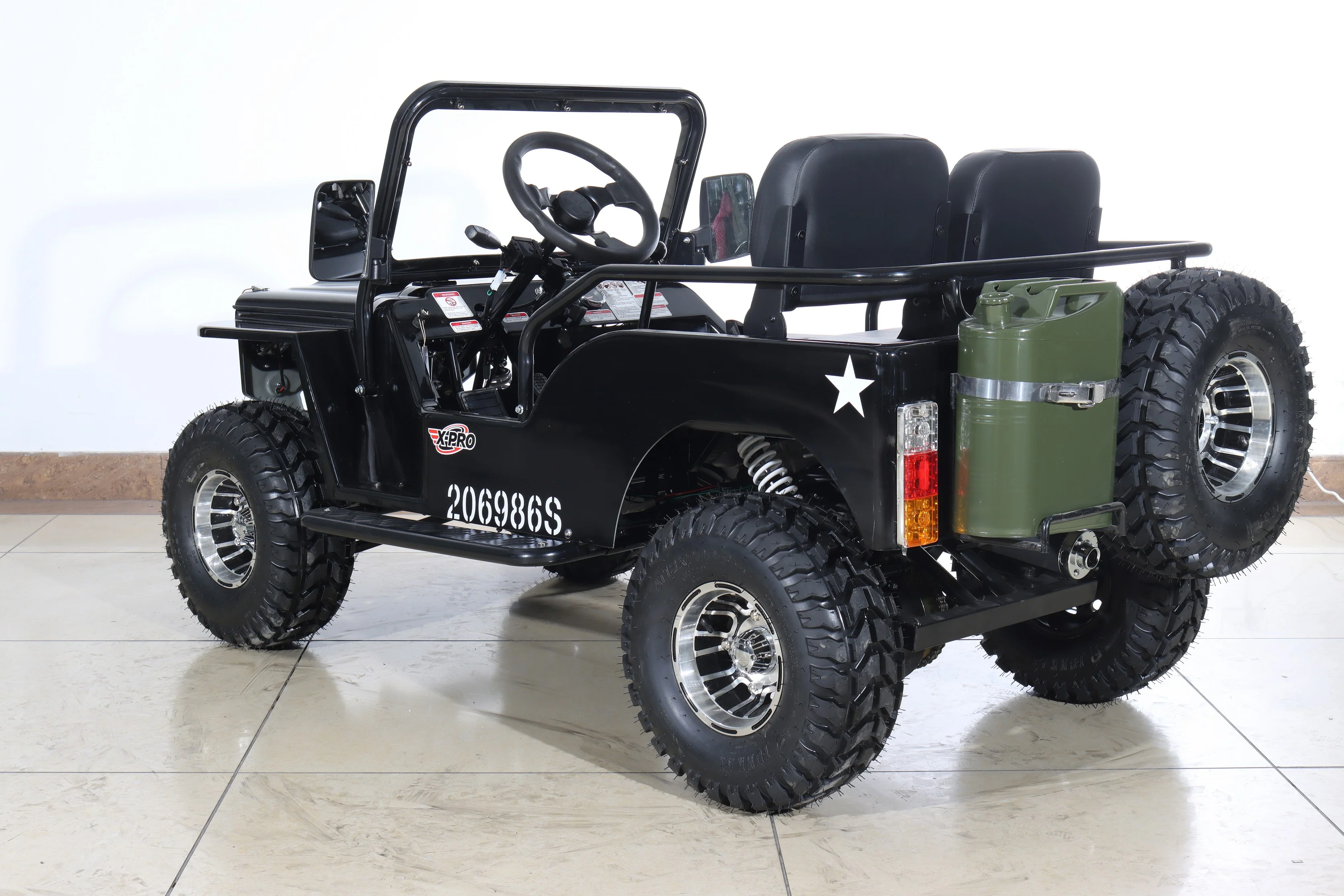

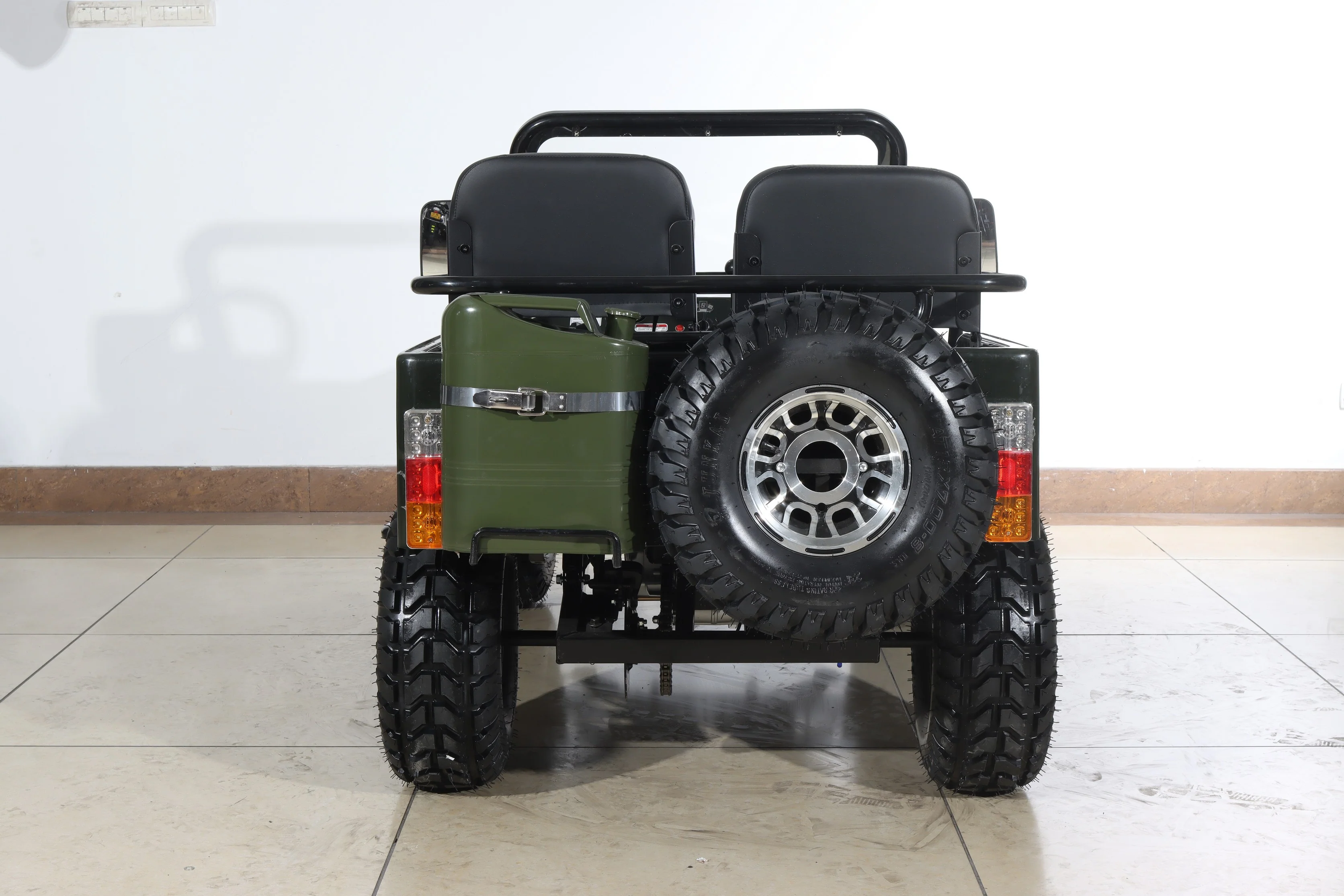

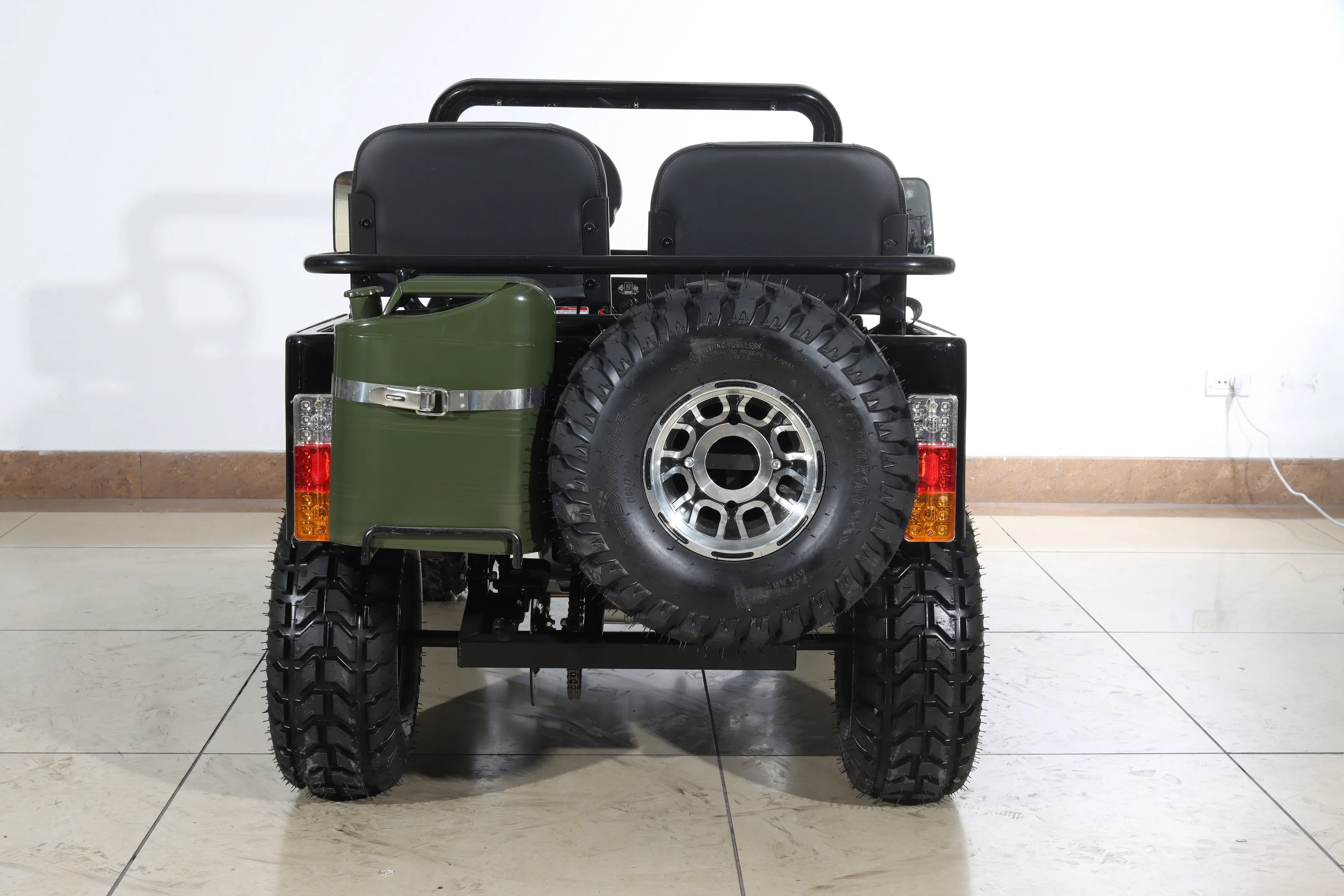

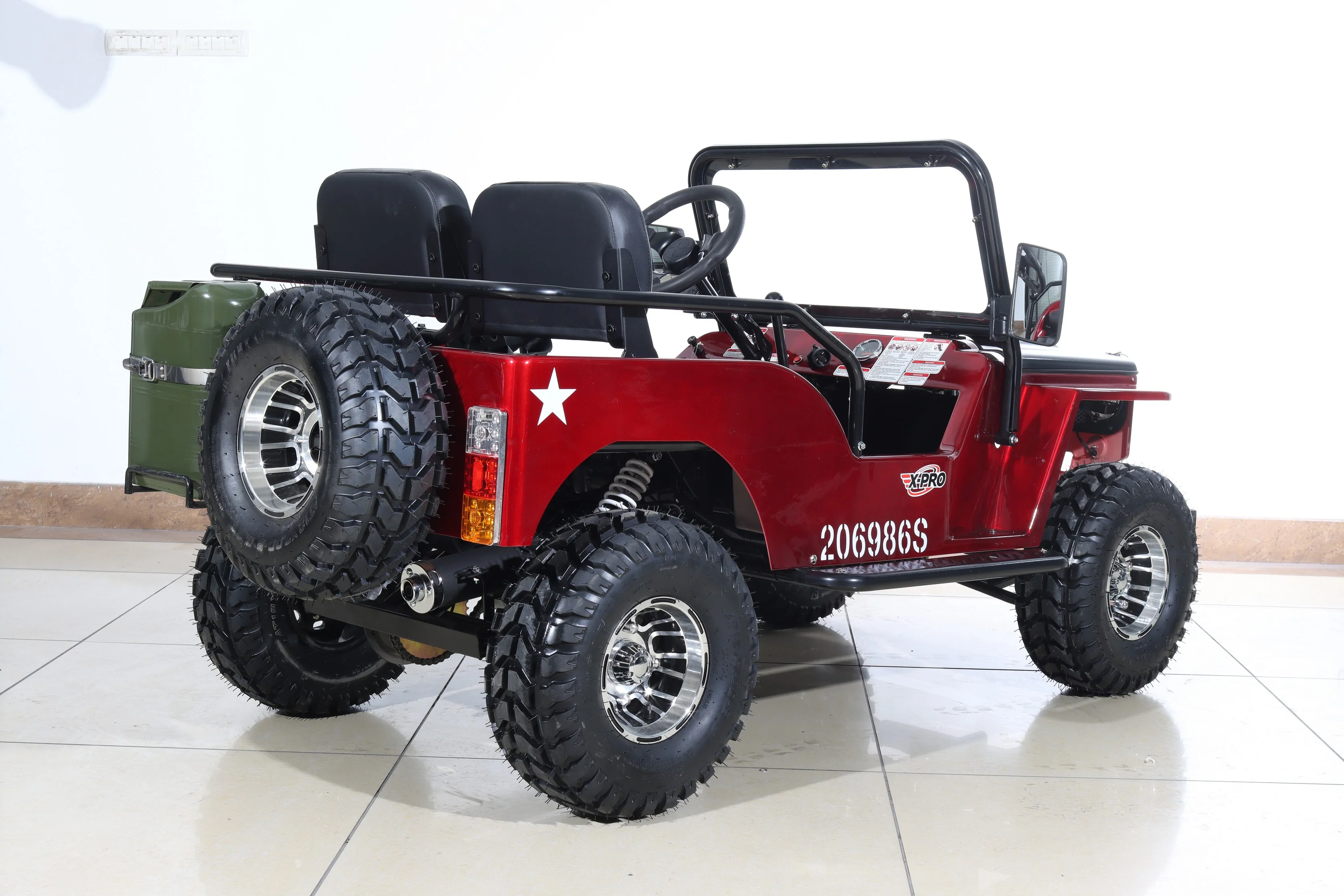

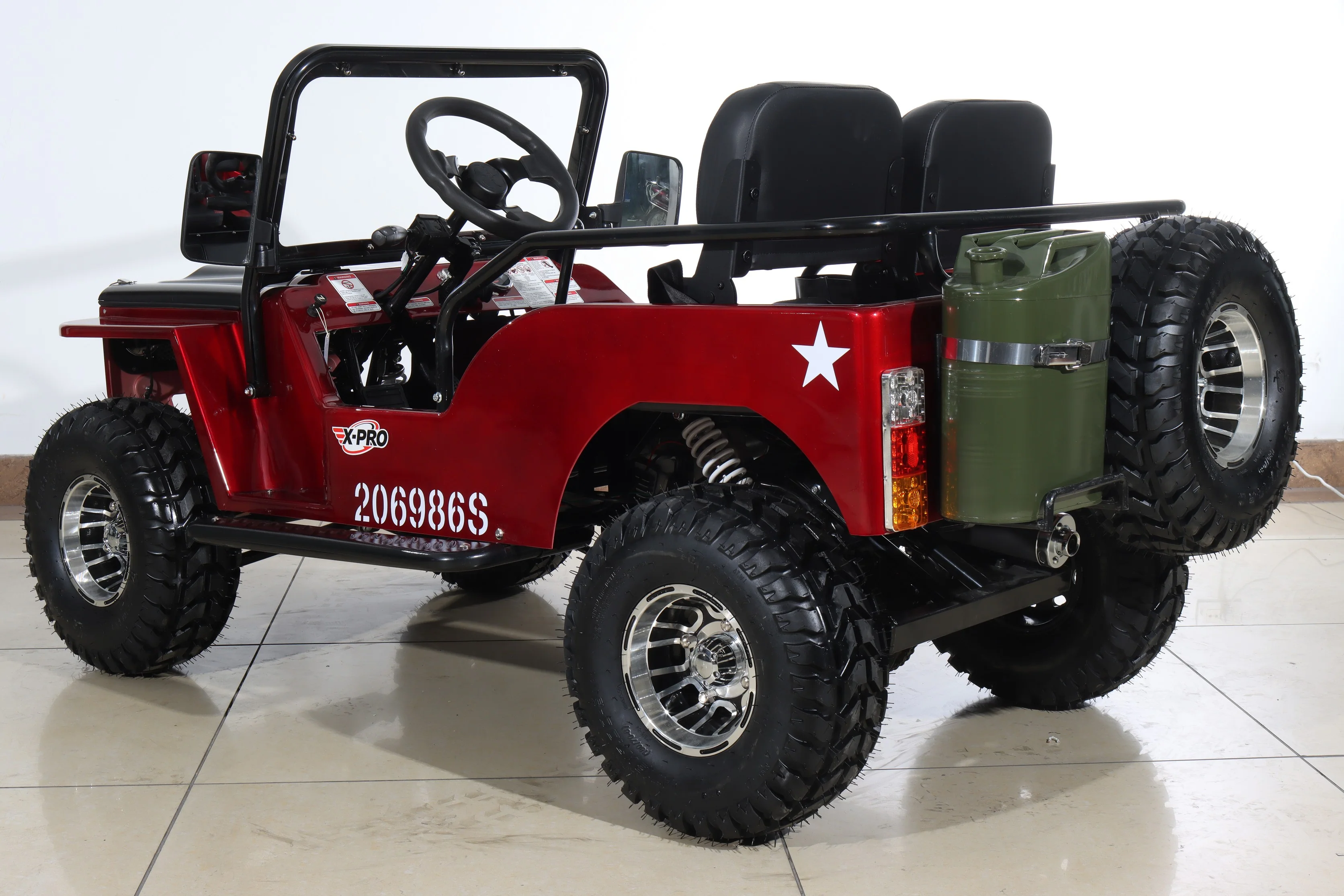

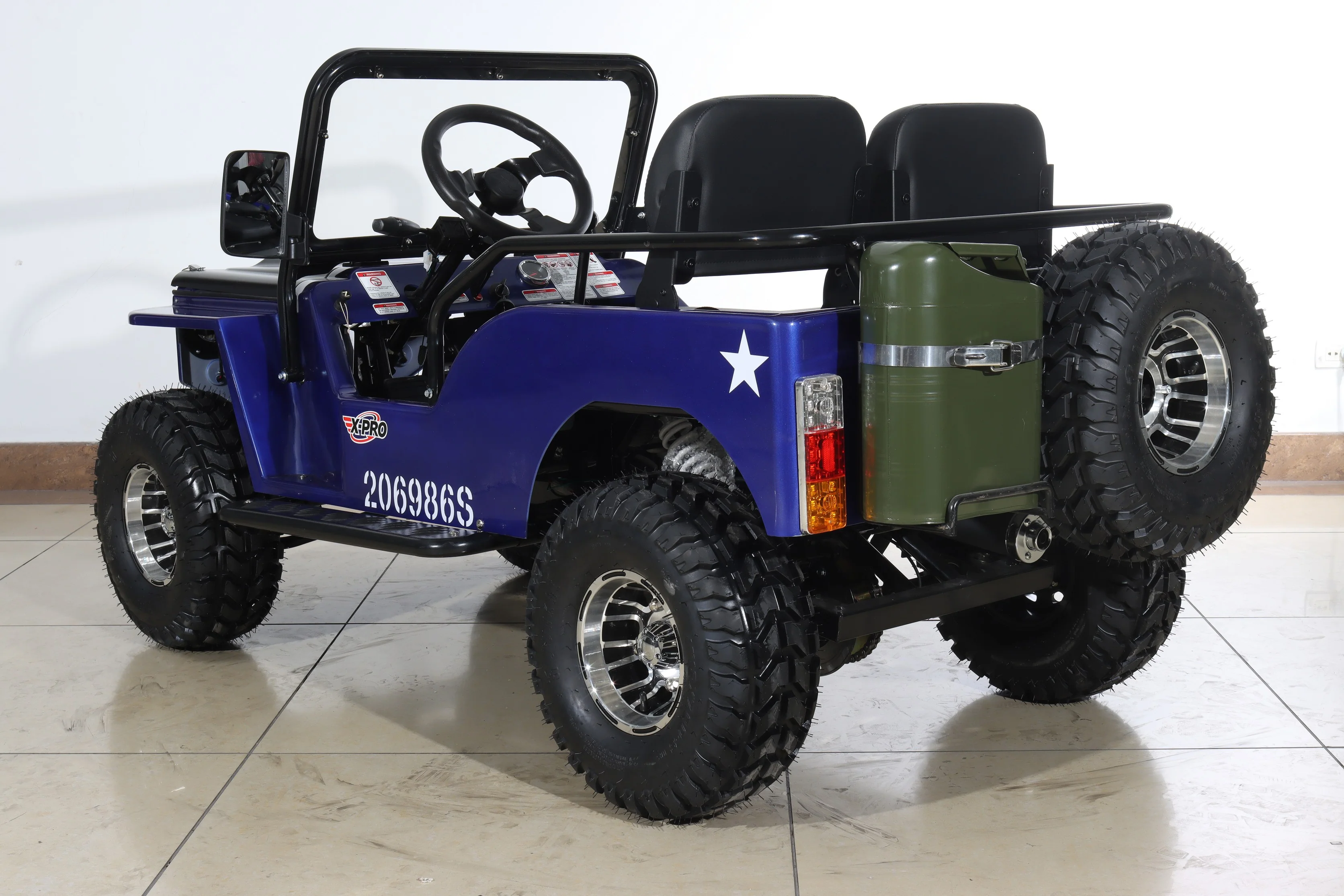

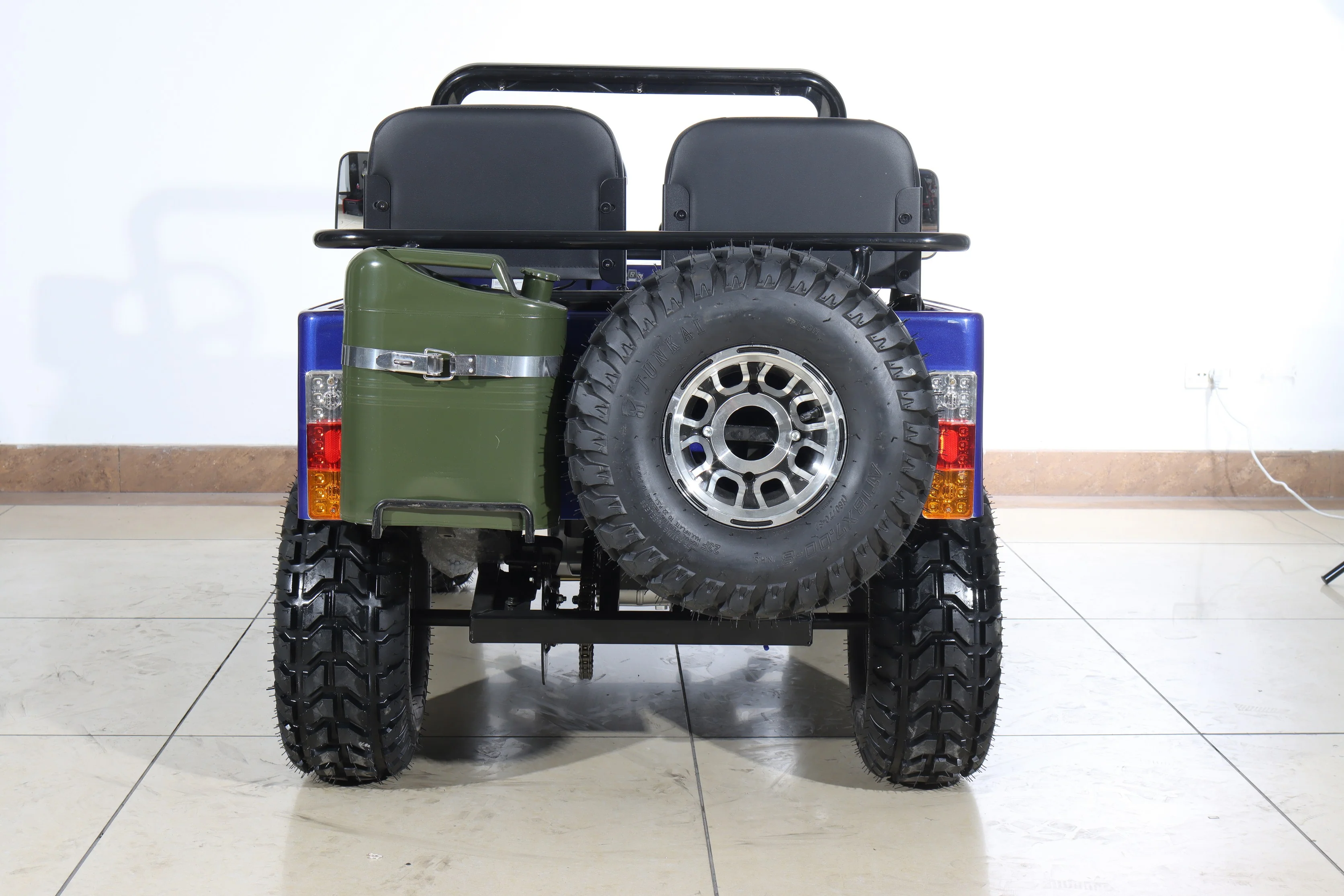

3. High Weight Capacity with Extra Tank and Spare Tire: The weight capacity for this go kart can be up to 350lbs which can carry one adult and one child, just have fun with your child. The extra tank and spare tire at back side will save you from emergency.

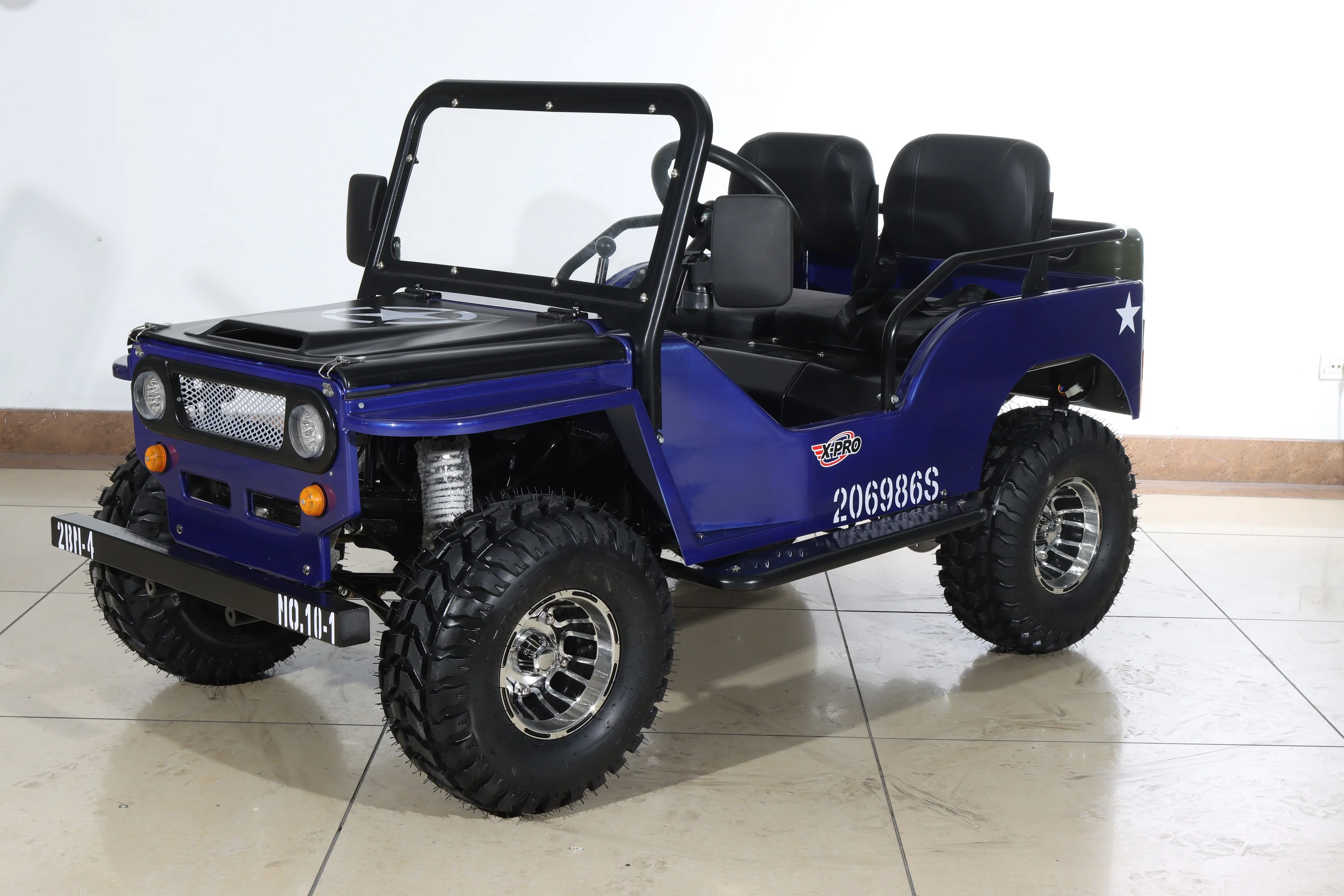

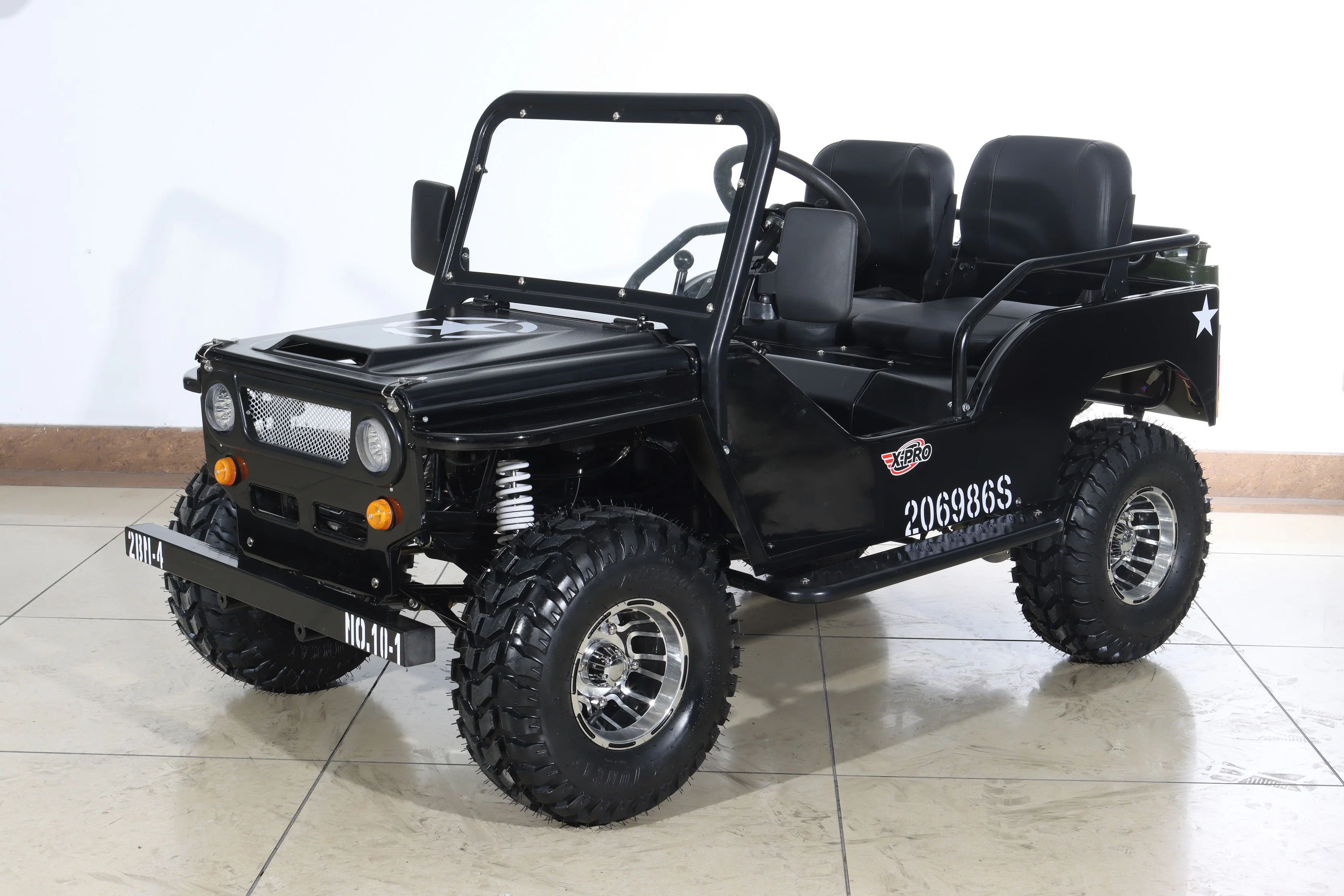

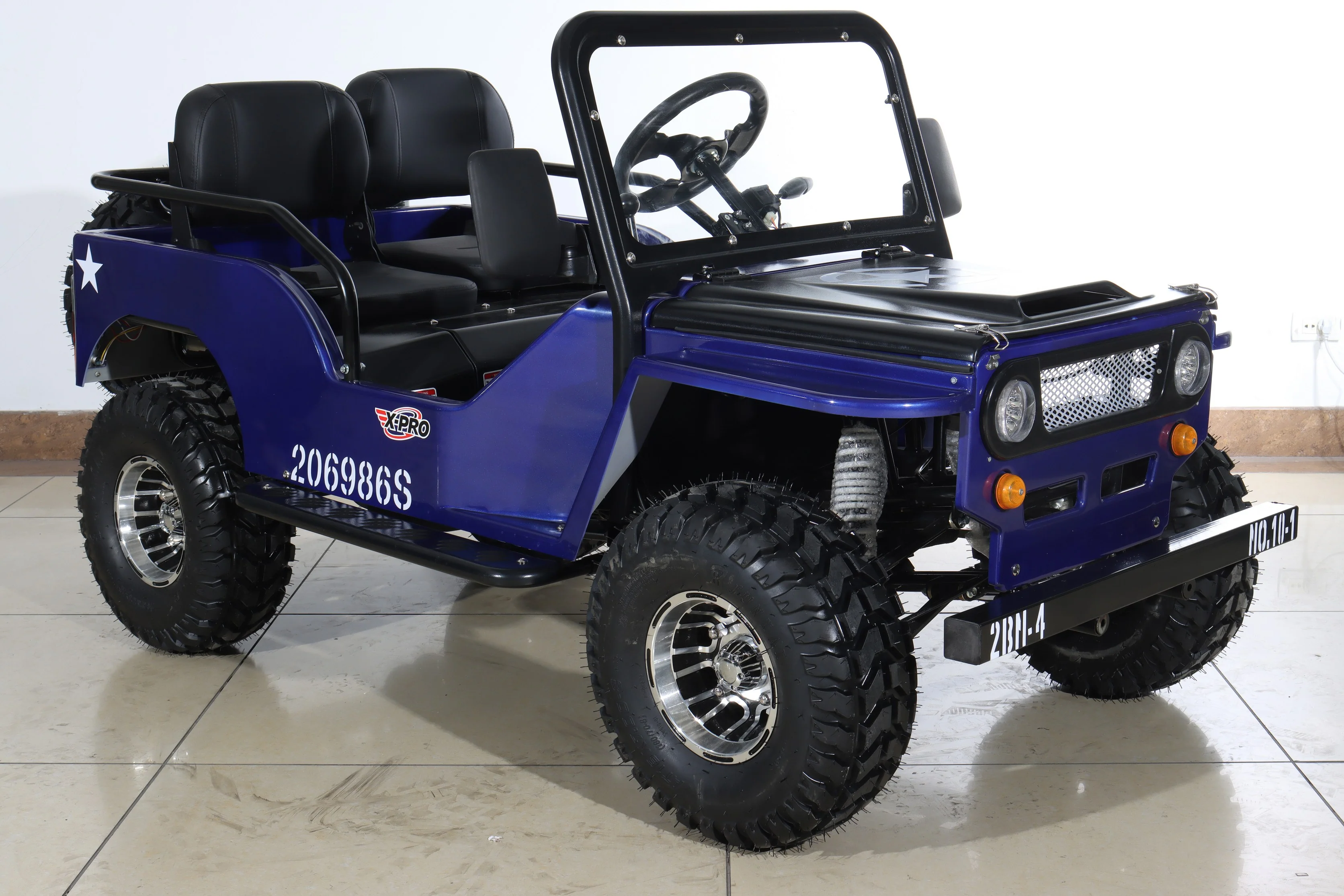

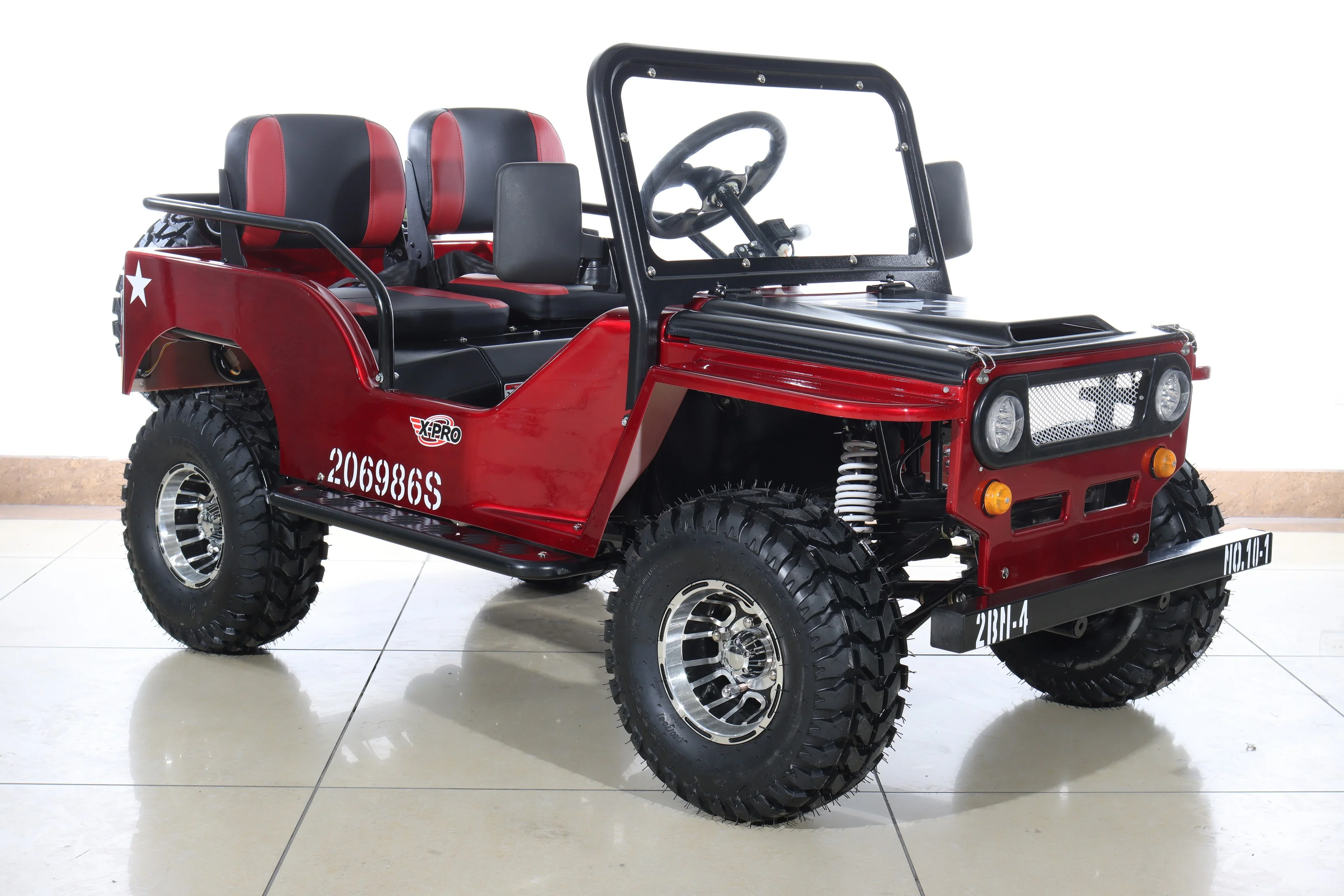

4. Stylish US Army Design Cool Jeep Car sytle with one-piece fully transparent plastic windshield and latest full-round rearview mirrors, plus the shining body painting makes this kart awesome and eye-catching.

• X-PRO 140cc Go Kart is equipped with a Semi-Automatic (3-Speed + Reverse) Transmission.
• Front and Rear Hydraulic Disc brake provides sure and efficient stopping power in a variety of conditions.
• Electric Starting provides much easier control and handling,and gives the rider the great convenience in the event of a stall.
• Durable chain drive, which is really great. Chains are easy to repair and replace.

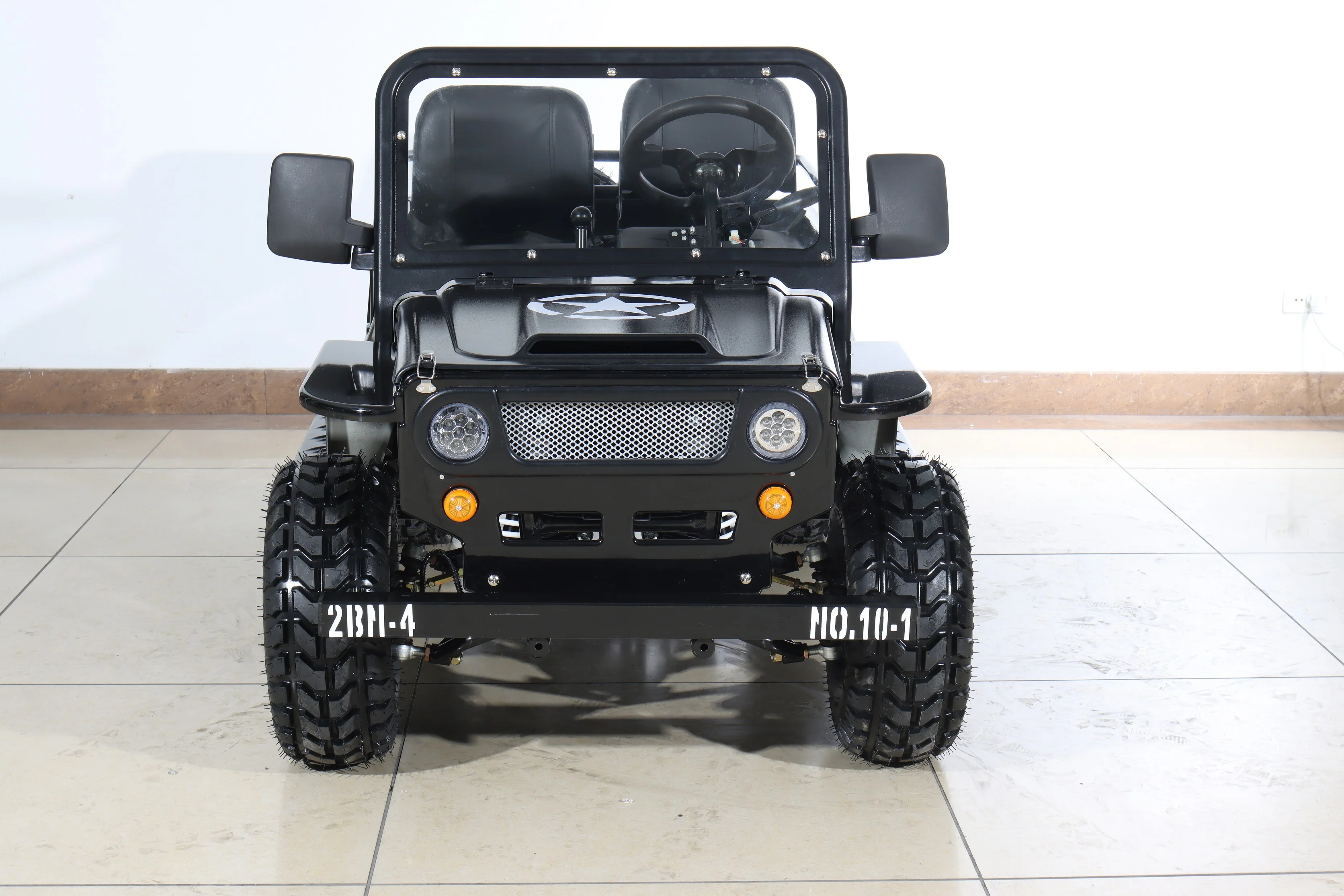

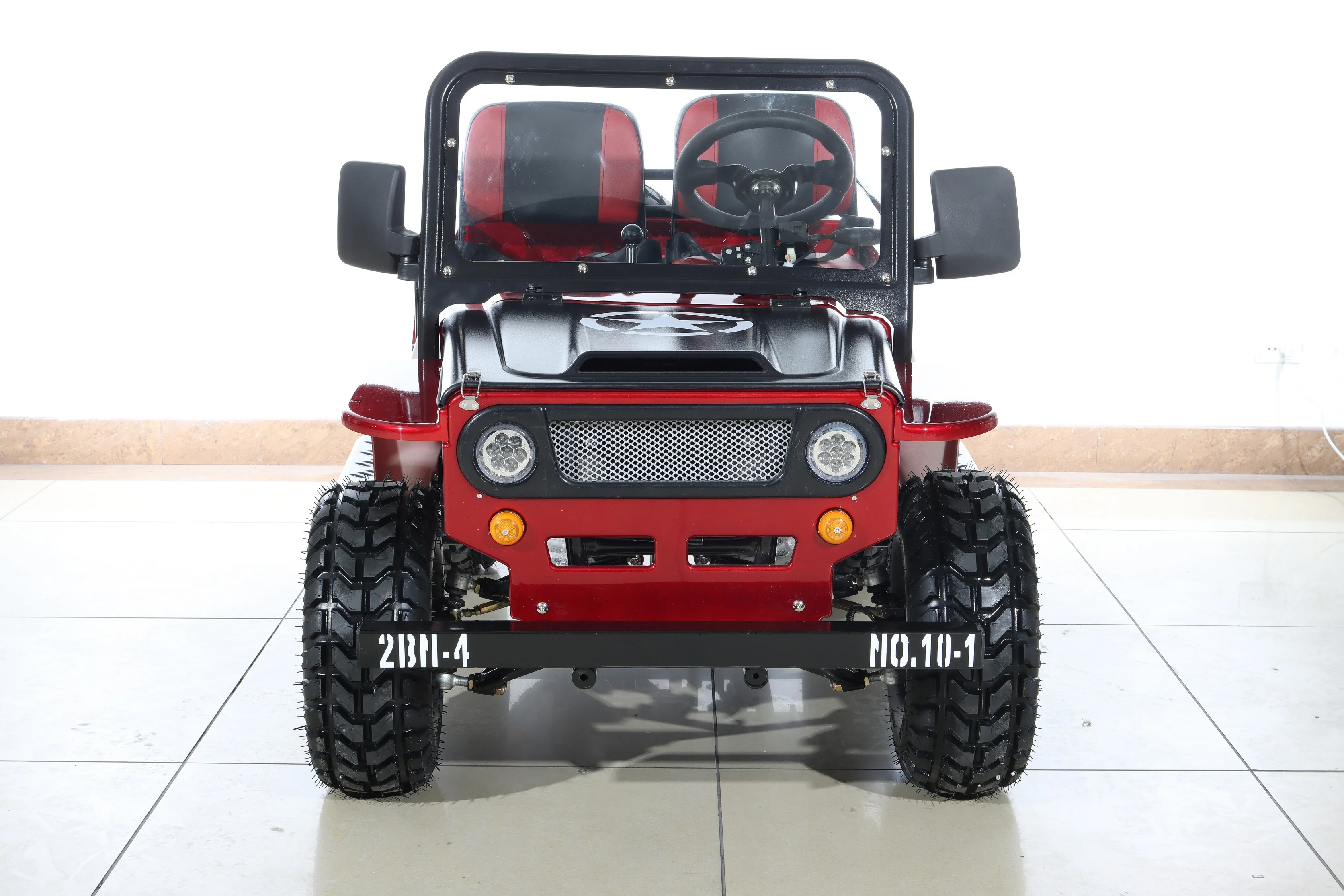

• Big LED Headlights.
• Big front and rear 18" Chrome Wheels
• Some Assembly Required.

Specifications

Model Number	GK-U06
Engine/Drive Train
Engine	156FMJ 140cc, 4 stroke, 1-cylinder
Cooling System	Air Cooled
Max Horsepower	6.3KW/7500±500r/min
Max Torque	8.9N.m/5500±500r/min
Bore Stroke	56x57
Compression Ratio	8.8:1
Transmission	Semi-Automatic (1 Reverse + N + 3-speed)
Max Speed (MPH)	40+ (Depending on Riders Weight and Road Conditions)
Final Drive	Chain Drive
Start System	Electric
Carburetor	PZ22
Ignition	CDI
Battery	12V/9Ah
Frame /Body/ Suspension / Brakes
Front Suspensions	Hydraulic Spring Shock Absorber
Rear Suspensions	Hydraulic Spring Shock Absorber
Front Brakes	Hydraulic Disc
Rear Brakes	Hydraulic Disc
Front Tires	18x7-8 Alloy Rim
Rear Tires	18x7-8 Alloy Rim
Capacities / Dimensions
Weight Capacity(lbs)	350
Net Weight (lbs)	330
Gross Weight (lbs)	364
Overall Length	76.5"
Overall Width	43.3"
Overall Height	28.3"
Package Size	76*45*22"
Seat Height	24.4"
Wheelbase	49.6"
Ground Clearance	11"
Fuel Capacity	7L
Safety / Control
Foot Brake	Yes
Horn	Yes
Headlights	Yes, LED
Tail lights	Yes
Turn Signal Indicators	Yes
Others
EPA Approved	Yes
